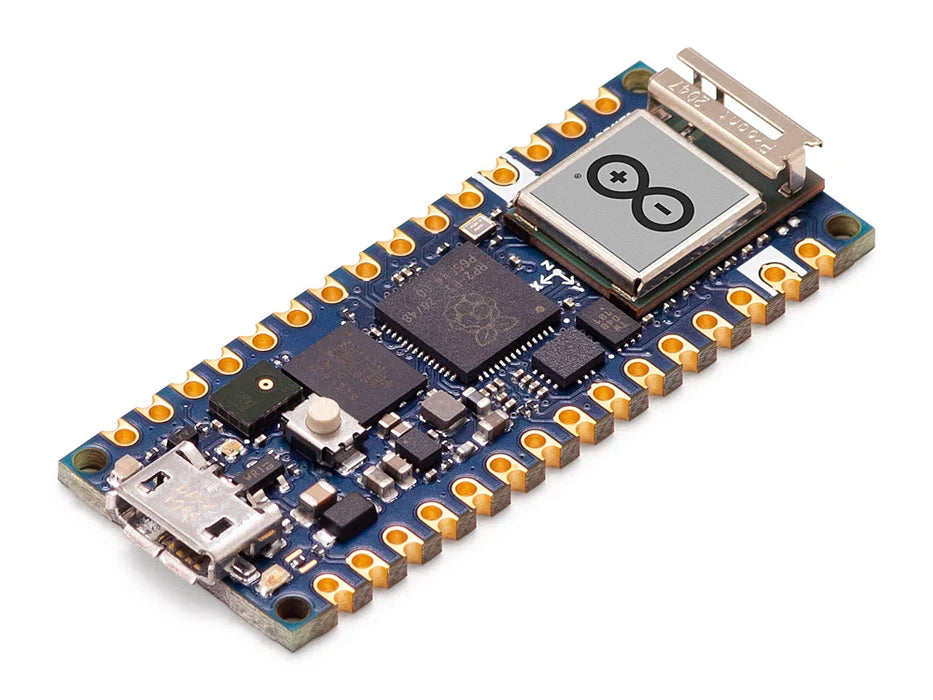

We are sold out of arduino nano RP2040 which is required to make this PCB function. However they are easily available on amazon. Most other Arduino nanos will also work (Nano ESP32, BLE-33, 33IOT)
This Project requires Soldering, and simple Arduino programming. Nothing that a beginner can't learn online. All Code is available for this project and ready for upload to the board.

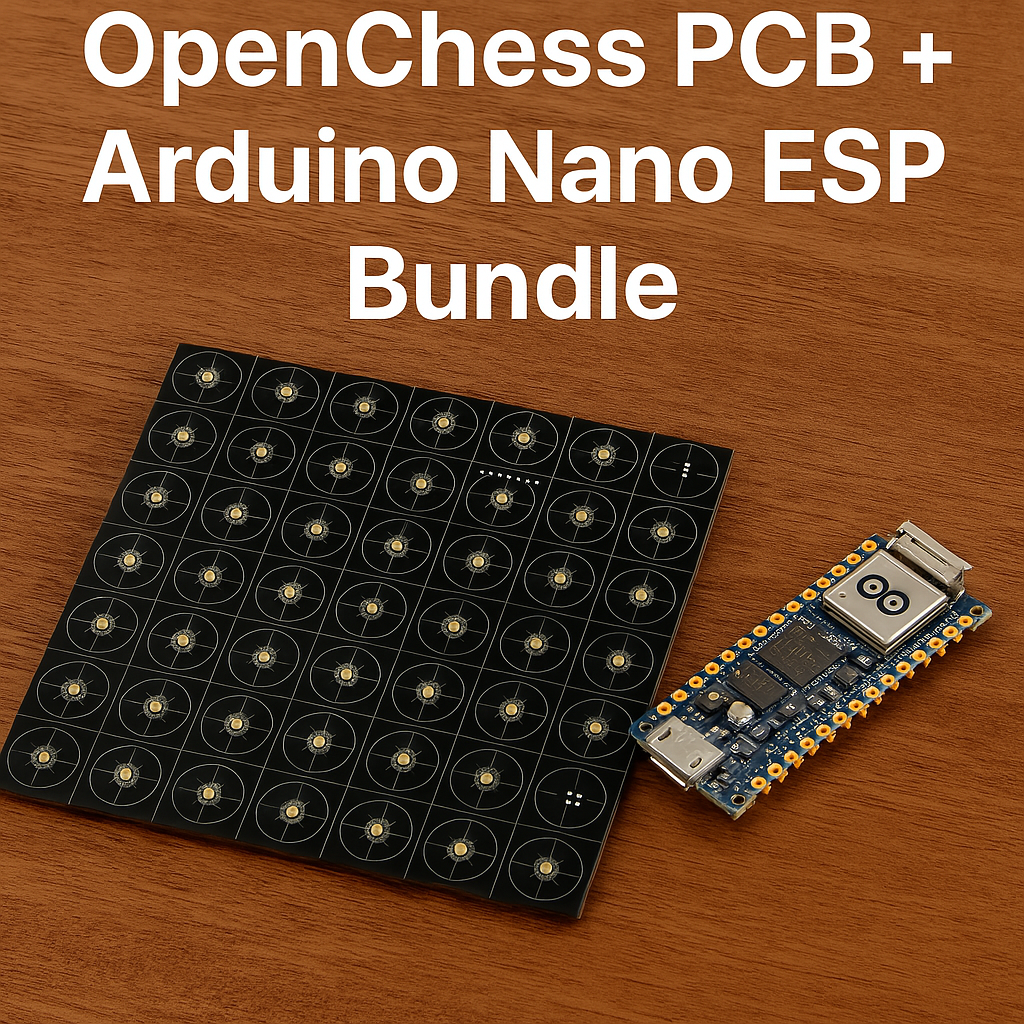

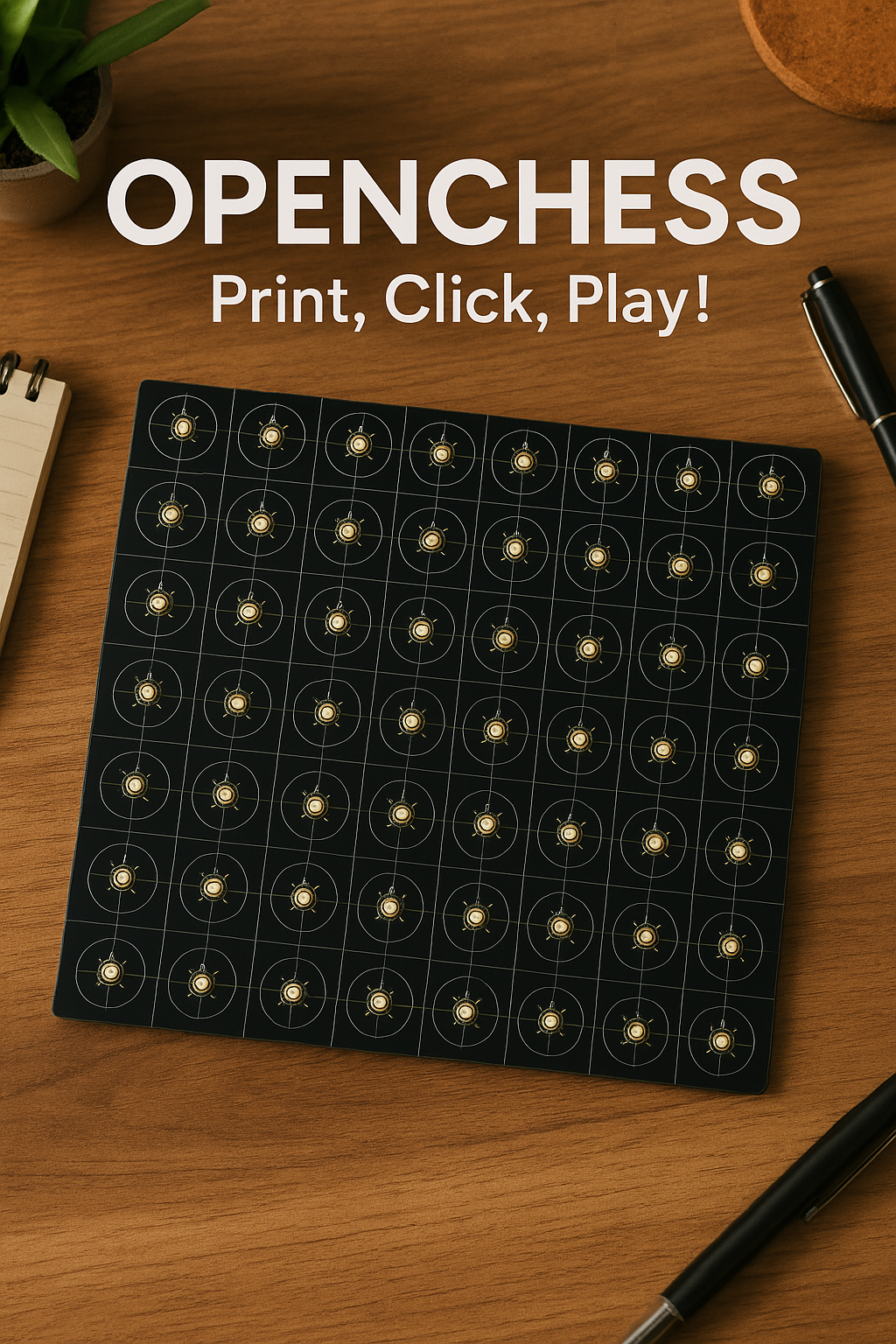

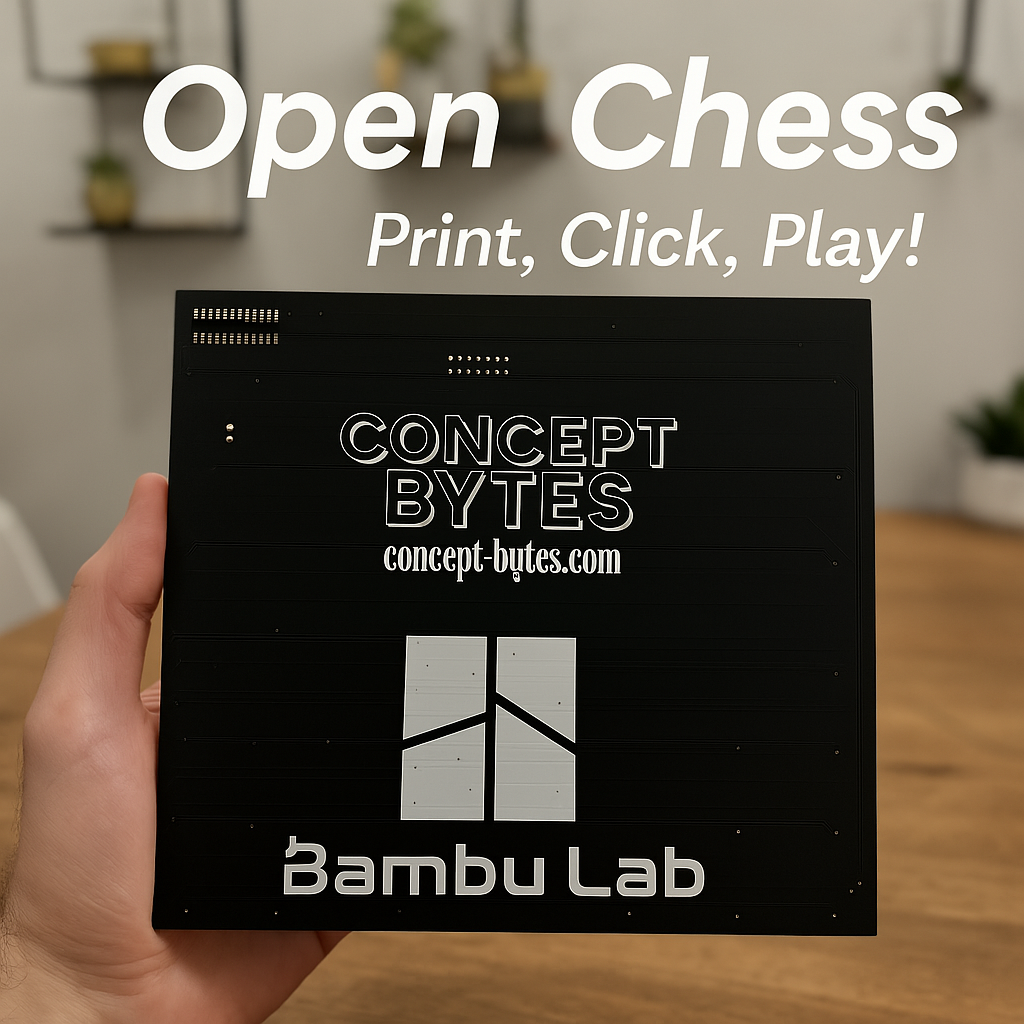

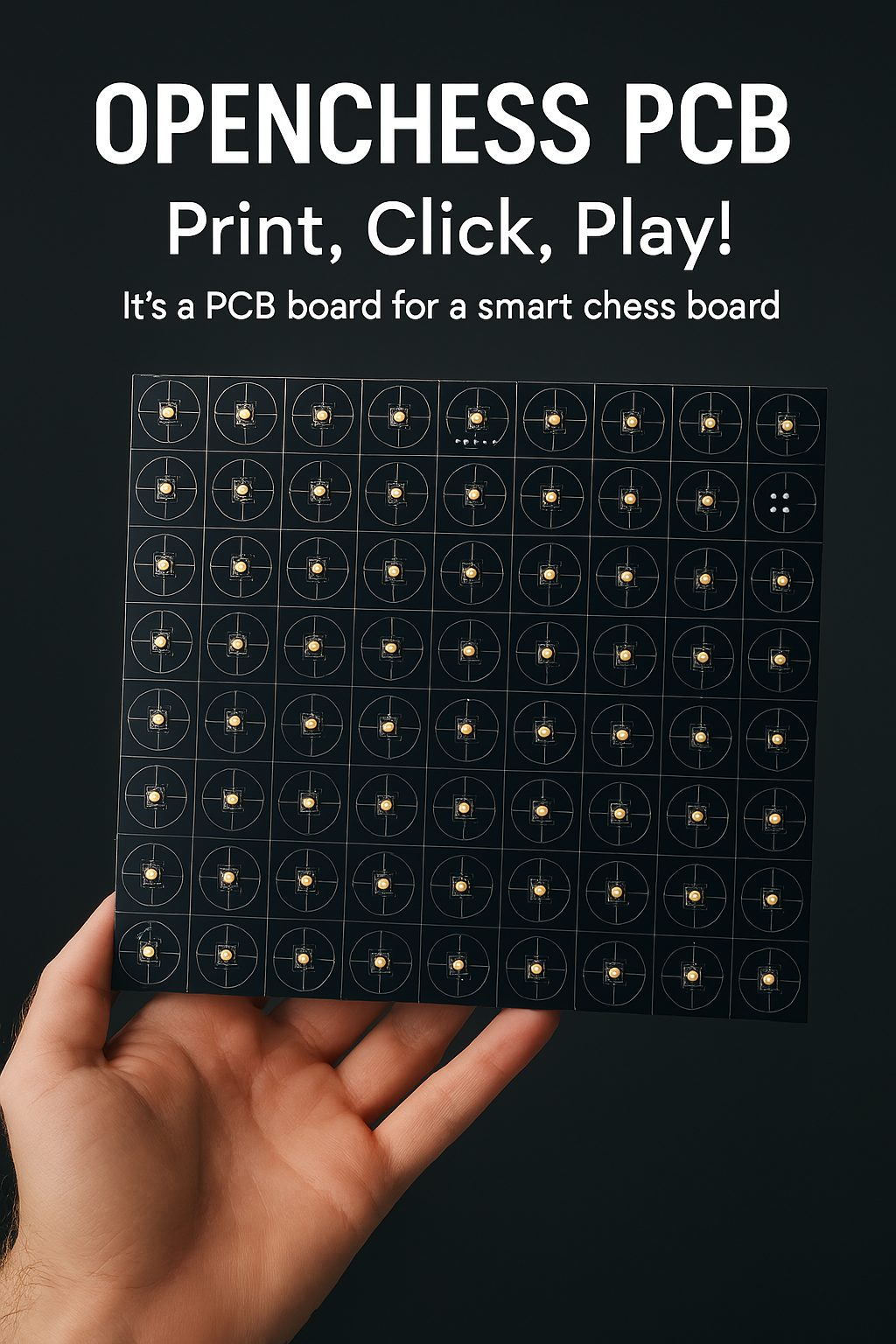

Print. Click. Play! Upgrade your 3D-printed chessboard into a smart, interactive game with the OpenChess PCB — the heart of the OpenChess system. This custom-designed PCB integrates magnetic sensors and RGB LEDs under each square, enabling real-time piece detection and illuminated move guidance.
🔧 Features:
64 Magnetic Sensors Detects piece positions accurately for real-time tracking.
64 RGB LEDs Lights up each square with vibrant colors for move suggestions, game feedback, or animations.
Plug-and-Play Design Designed to pair seamlessly with a microcontroller and OpenChess firmware.
Perfect for Makers Built for hobbyists and developers — just print your own chessboard and install!
🧩 Compatible With:
Custom 3D printed OpenChess boards
Bambu Lab printer sizing
Arduino, Raspberry Pi, and similar microcontrollers

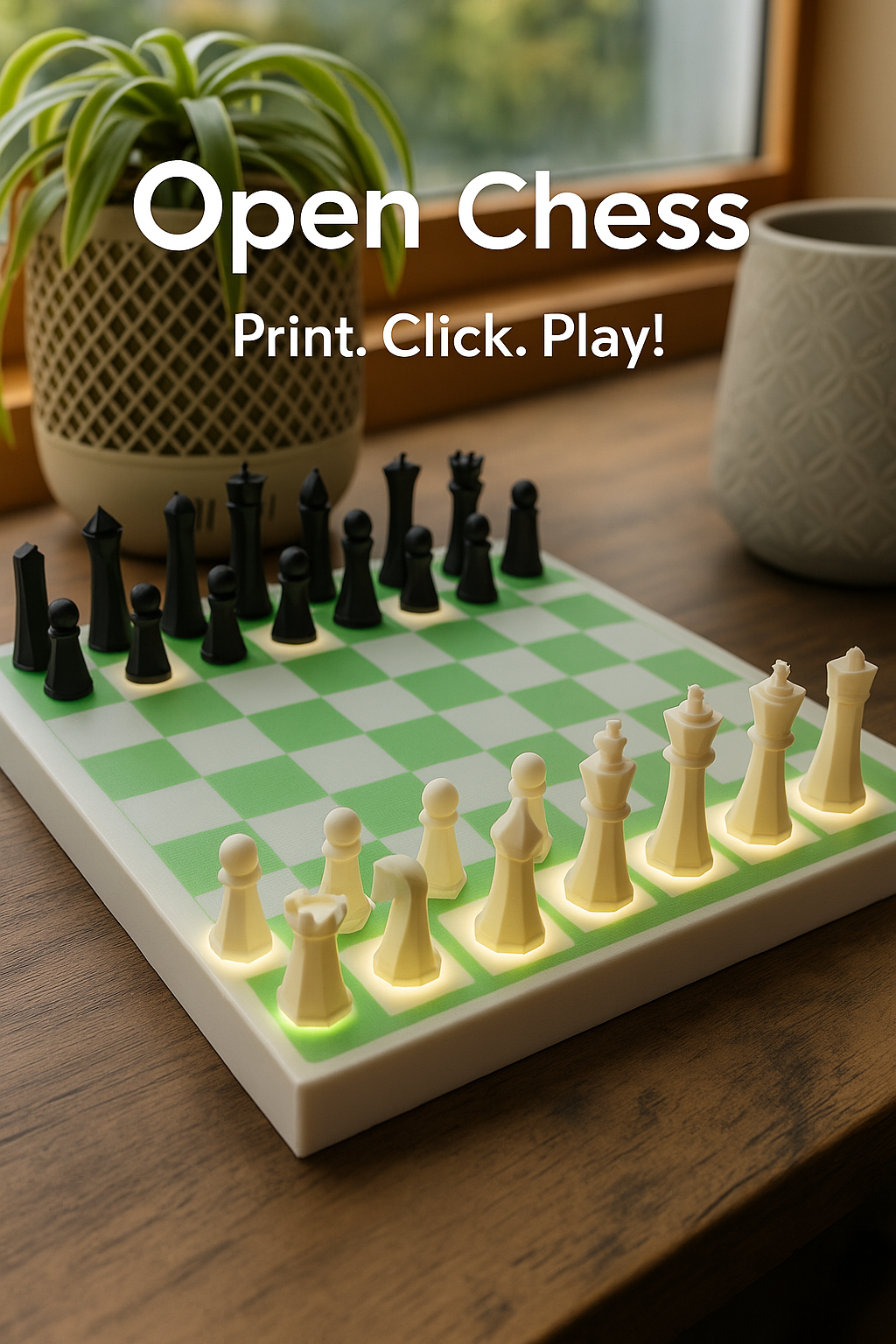

Build your own smart chessboard with OpenChess PCB and bring a whole new level of interactivity to your game.
